From slurry to green body, Wuhan Sike Intelligent has streamlined the entire tape casting process.

Wuhan Sike Intelligent Technology Co., Ltd. will participate in the 8th Aibang Precision Ceramic Industry Chain Exhibition from August 26 to 28, 2026 (Booth No. B11). We warmly welcome industry colleagues to visit us and exchange ideas!

Exhibitor Spotlight

｜

Wuhan Sike Intelligent Technology Co., Ltd.

Booth No.: B11

Product Introduction

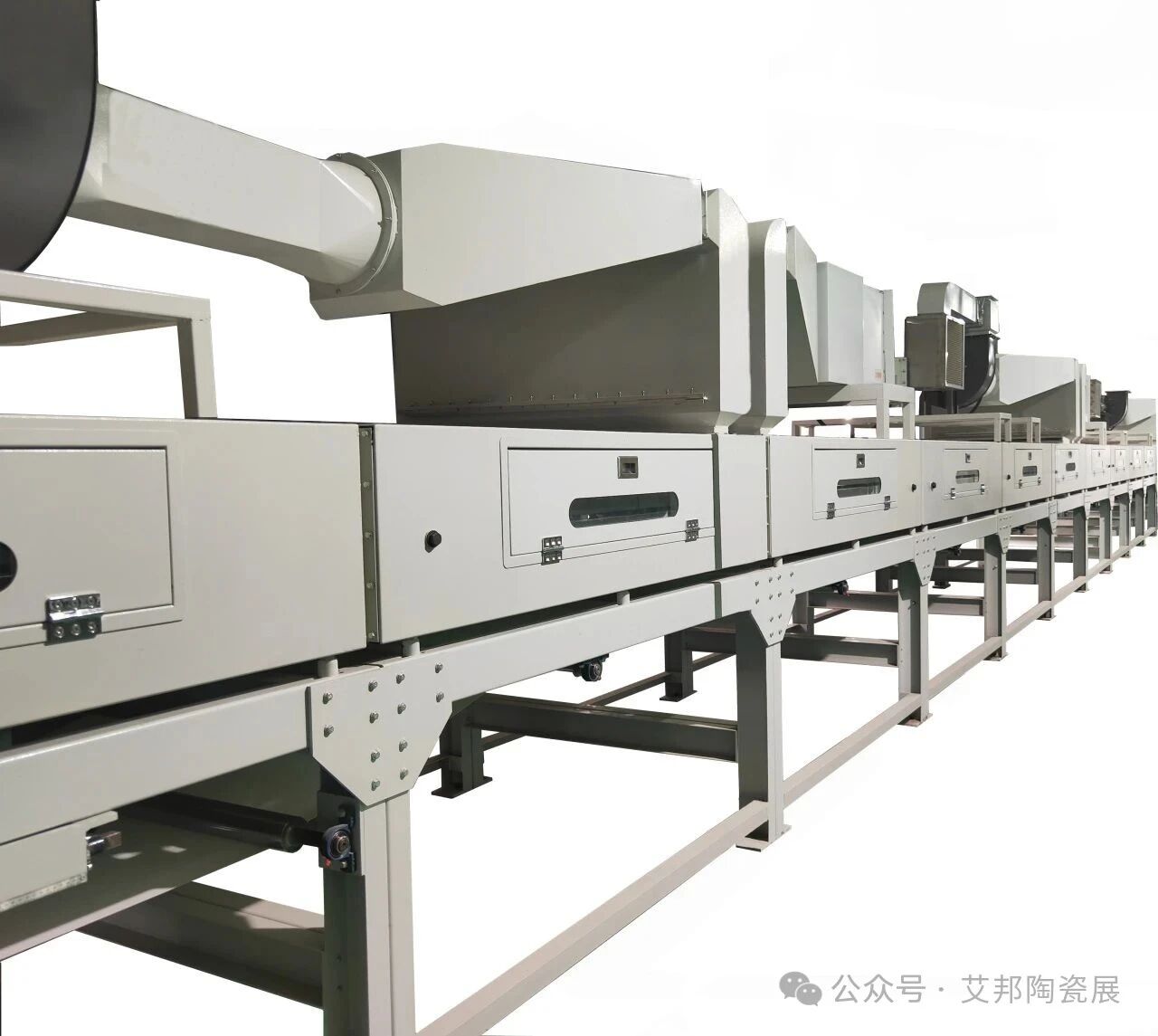

SK-LYL Large-Scale Production Casting Machine

1 Tape Casting Machine

SK-LYL Large-Scale Production Tape Casting Machine

Product Overview:

The SK-LYL large-scale tape casting machine feeds mixed slurry into a casting box via a supply and degassing unit, with the liquid level controlled by a displacement sensor. A doctor blade then forms the slurry into a green tape (film) possessing specific strength and flexibility. After passing through a drying tunnel, the green tape can either be wound up together with the carrier substrate for later use, or peeled off the substrate after drying, trimmed, and slit to the user-specified width. It is widely used for mass production.

Key Technical Parameters:

Casting width: 400–1200 mm

Casting speed: 0.01–3.0 m/min (0.2–6 m/min for high-speed models)

Doctor blade height: 5–3200 μm

Blade adjustment precision: 0.001 mm

Thickness precision: ±(1 μm + 2% of film thickness)

Operating voltage: 380 V, 50/60 Hz

Viscosity: 500–100,000 mPa·s (cP)

Technical Highlights:

1. PID-based automatic flow control with a precision of ±0.10 mm ensures accurate material feeding.

2. Fully automatic film tracking and alignment system maintains neat winding of the film strip.

3. High-efficiency drying via a drying tunnel and multiple air intake/exhaust systems.

4. After drying, the green tape can be stripped, edge-trimmed, and slit to customer-specified widths.

5. Designed for high-efficiency mass production.

Market Advantages:

1. High production efficiency with continuous manufacturing capabilities; capable of stable, long-term operation to meet large-scale production demands.

2. High casting precision; dry film thickness accuracy is controlled within ±(1 µm + 2% of film thickness), ensuring uniformity and consistency in ceramic film thickness, thereby enhancing product performance and quality.

3. High level of automation reduces the need for manual intervention, lowering labor costs and minimizing the scrap rate caused by human error.

4. Strong process adaptability; supports casting with various materials such as alumina, aluminum nitride, zirconia, and corn starch. Process parameters can be adjusted to produce ceramic films with varying thicknesses, widths, and properties, meeting the diverse needs of different industries and customers. Comprehensive after-sales service includes a 2-year warranty and lifetime technical support.

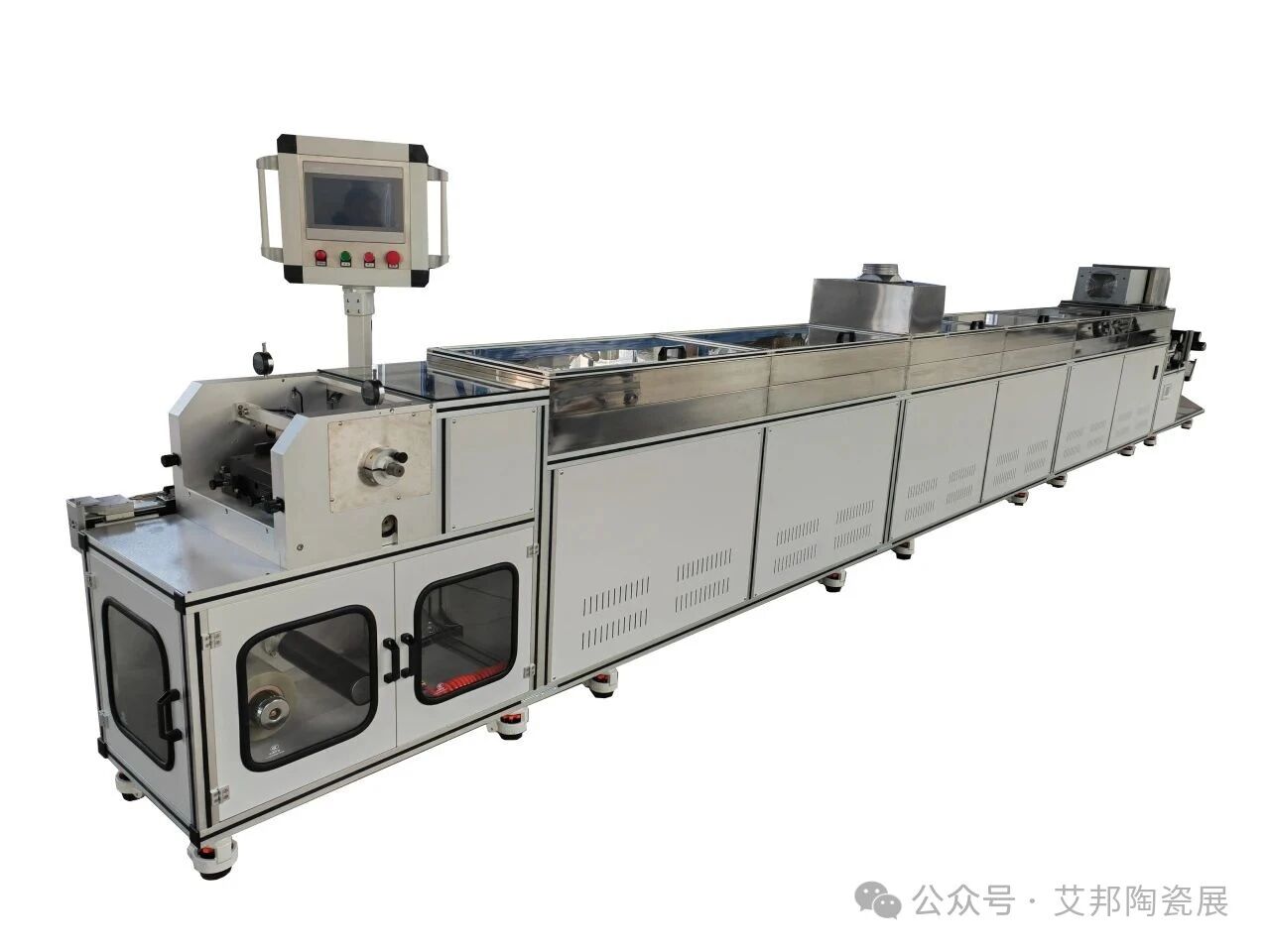

SK-LYM Medium-sized Tape Casting Machine

2 Tape Casting Machine

SK-LYM Mid-sized Tape Casting Machine

Product Overview:

The SK-LYM mid-sized tape casting machine feeds mixed slurry into a casting box via a supply system, with the liquid level controlled by a laser displacement sensor. A doctor blade then forms the slurry into a green tape (film) possessing specific strength and flexibility. It is widely used for pilot-scale tape casting in research institutes and industrial enterprises, featuring highly automated control throughout the entire process—from slurry feeding to green tape winding.

Key Technical Parameters:

Casting width: 200–400 mm

Casting speed: 0.01–3.0 m/min (0.2–6 m/min for high-speed version)

Doctor blade height: 5–3600 μm

Blade adjustment precision: 0.001 mm

Thickness accuracy: ±(1 μm + 2% of film thickness)

Operating voltage: 380 V, 50/60 Hz

Viscosity: 500–100,000 mPa·s (cP)

Technical Highlights:

1. PID-based automatic flow control with ±0.1mm precision ensures accurate material feeding.

2. Fully automatic film web guiding system maintains neat winding.

3. Multi-zone independent baseplate heating combined with hot-air circulation (intake/exhaust); temperatures in each zone are adjustable and monitored in real-time.

4. Green sheets can be peeled, edge-trimmed, and slit to user-specified widths after drying.

5. Servo motor and gravity-based tension control ensure smooth, reliable operation with adjustable and controllable running tension.

Market Advantages:

1. Precisely meets diverse needs, catering to small-to-medium-scale orders and new product prototyping; avoids the issues of overproduction or cumbersome process switching associated with large-scale equipment. It accurately replicates various process conditions, paving the way for new material R&D—making it a preferred choice for universities and research institutions.

2. High casting precision: dry film thickness accuracy is controlled within ±(1µm + 2% of film thickness), ensuring uniformity and consistency in ceramic film thickness and enhancing product performance and quality.

3. Accelerates the commercialization of innovations, helping enterprises and research units secure a technological edge in a competitive market and lead new industry trends.

4. Cost-effective: compared to large-scale casting machines, this equipment requires significantly lower initial investment and offers simple, easy maintenance.

5. Comprehensive after-sales service: includes a 2-year warranty and lifetime technical support.

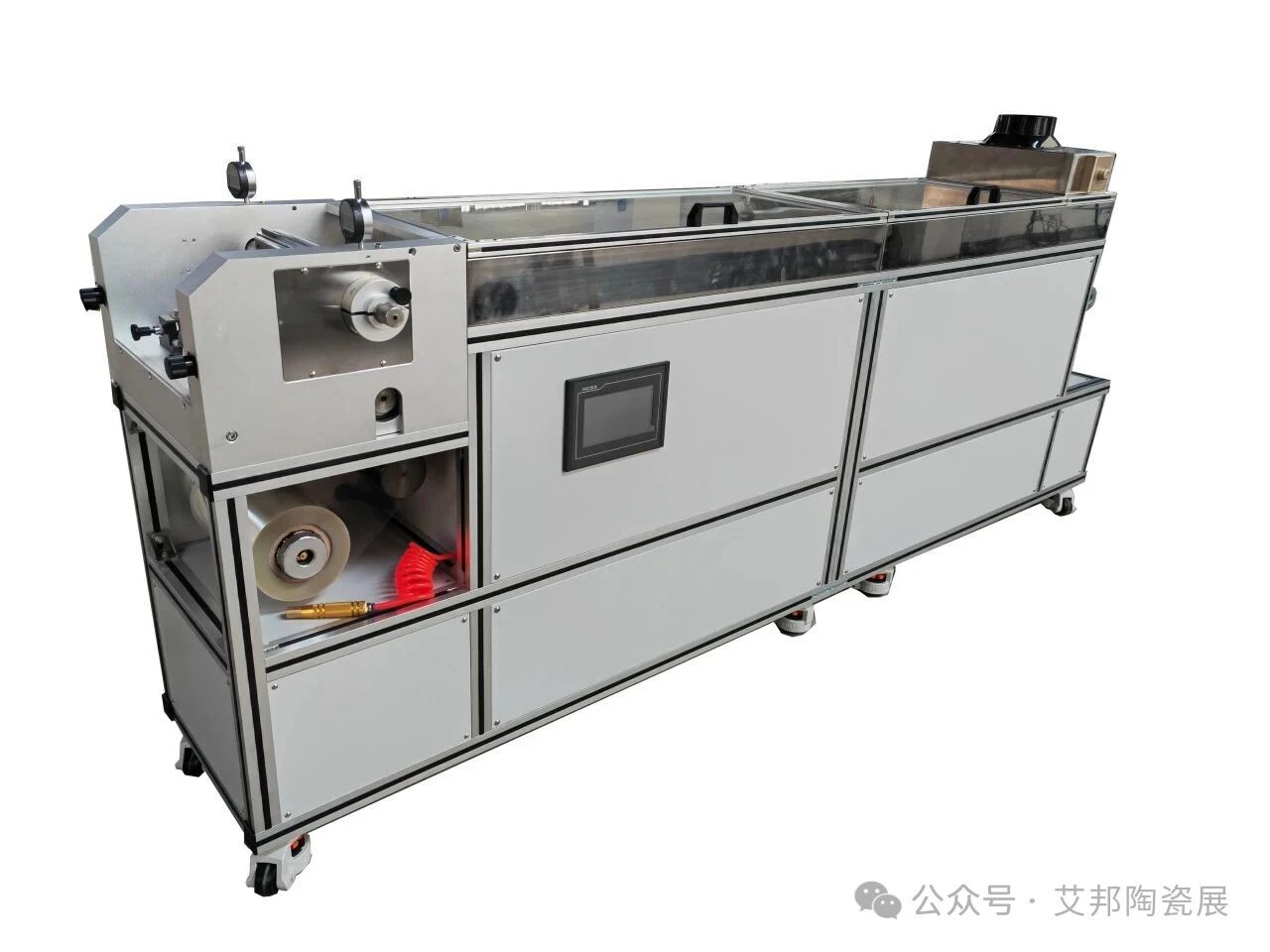

SK-LYS Small-Scale Casting Machine

3 Tape Casting Machine

SK-LYS Compact Tape Casting Machine

Product Overview:

The SK-LYS compact tape casting machine casts a mixed-solution slurry from a reservoir onto a carrier film (typically PET). A green film is formed through the relative movement between the carrier film and a doctor blade, with the film thickness controlled by the blade gap (adjustment precision up to 0.001 mm). The green film and carrier film are fed into a drying oven; as the solvent evaporates, the organic binder forms a network structure among the ceramic particles or polymer materials, creating a green sheet with specific strength and flexibility. The dried green sheet is then wound onto a roll along with the carrier film for subsequent use. It is primarily used for experimental research on ceramic materials, new material development, and small-scale trial production.

Key Technical Parameters:

Casting width: 100–300 mm

Casting speed: 0.01–3.0 m/min (0.2–6 m/min for high-speed version)

Doctor blade height: 5–3600 μm

Blade adjustment precision: 0.001 mm

Thickness precision: ±(1 μm + 2% of film thickness)

Total installed power: Approx. 3 kW

Viscosity: 500–100,000 mPa·s (cP)

Technical Highlights:

1. Integrated control system featuring programmable logic and a user-friendly HMI (Human-Machine Interface) for intuitive, simple operation.

2. Suitable for process testing and pilot-scale casting of various products; convenient and efficient.

3. Equipped with base plate heating, inlet air heating, and an exhaust system.

4. Simple process control; delivers high-efficiency, high-precision casting results.

5. Stable performance; environmentally friendly and energy-efficient.

Market Advantages:

1. High flexibility and adaptability. Parameters such as casting speed, temperature, and pressure can be flexibly adjusted based on specific experimental goals and materials, making it suitable for film preparation using various ceramic and polymer materials.

2. Excellent precision control. Equipped with an advanced PLC system, high-precision sensors, and intelligent control algorithms to ensure precise regulation of temperature and speed, guaranteeing process stability and accurate film thickness control.

3. Ease of operation. Features a touchscreen interface with intuitive human-machine interaction and a straightforward, easy-to-understand workflow.

4. Low maintenance costs; energy-efficient and eco-friendly.

5. Comprehensive after-sales service, including a 2-year warranty and lifetime technical support.

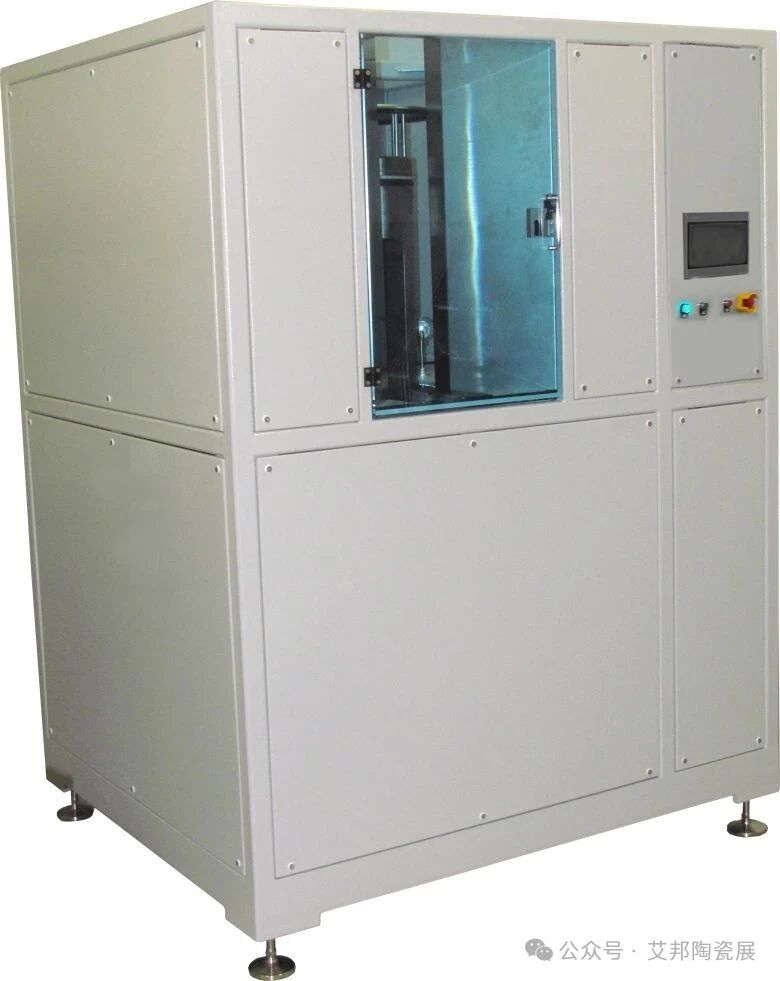

SK-JYD Warm Isostatic Press

4 Warm Isostatic Press

SK-JYD Warm Isostatic Press

Product Overview:

The SK-JYD Warm Isostatic Press processes laminated sheet stacks by sealing them in vacuum packaging bags and placing them into a chamber. A servo-hydraulic mechanism then transfers the chamber and materials into a sealed hot-water cylinder. After an initial preheating phase, a high-pressure booster pump pressurizes the water within the chamber. Under constant pressure, uniform heat and pressure are applied to the components inside the cylinder. This equipment is used for pressing multilayer ceramic green bodies and other thin-film materials, thereby enhancing the products' physical and electrical properties.

Key Technical Parameters:

Operating Pressure: 16–400 MPa

Preheating Time: 0–60 min

Constant Pressure Duration: 0–3000 s

Effective Volume: φ100–500 × 500 mm

Pressure Fluctuation Range: ±0.1 MPa

Equipment Power: Approx. 15 kW

Heating Range: Room temperature to 90°C

Technical Highlights:

1. Integrated touchscreen interface and programmable electrical control system.

2. Segmented pressure control, enabling precise multi-stage regulation.

3. Electric heating system supporting simultaneous heating and pressurization.

4. Gas-liquid pump system for rapid and stable pressurization, constant pressure maintenance, and pressure release.

5. Low water level alarm with automatic water replenishment.

Market Advantages:

1. Excellent density uniformity: Subjects the workpiece to uniform pressure from all directions, reducing intermolecular distances and ensuring a more uniform increase in density.

2. High level of automation: Equipped with an advanced PLC control system to automate the entire process—including preheating, pre-pressing, pressurization, pressure holding, and pressure release—thereby reducing manual intervention and enhancing production efficiency and product consistency.

3. Reliable performance and optimized design: Features a compact, lightweight structure that ensures long-term, stable operation.

4. Precise temperature control: Utilizes scientific heating methods combined with high-quality thermocouples and insulation materials to ensure high temperature accuracy and uniform heat distribution, guaranteeing consistent product quality.

5. High safety standards: Incorporates reliable sealing and safety mechanisms—such as overpressure protection and over-temperature alarms—to prevent equipment damage caused by abnormal pressure or temperature conditions.

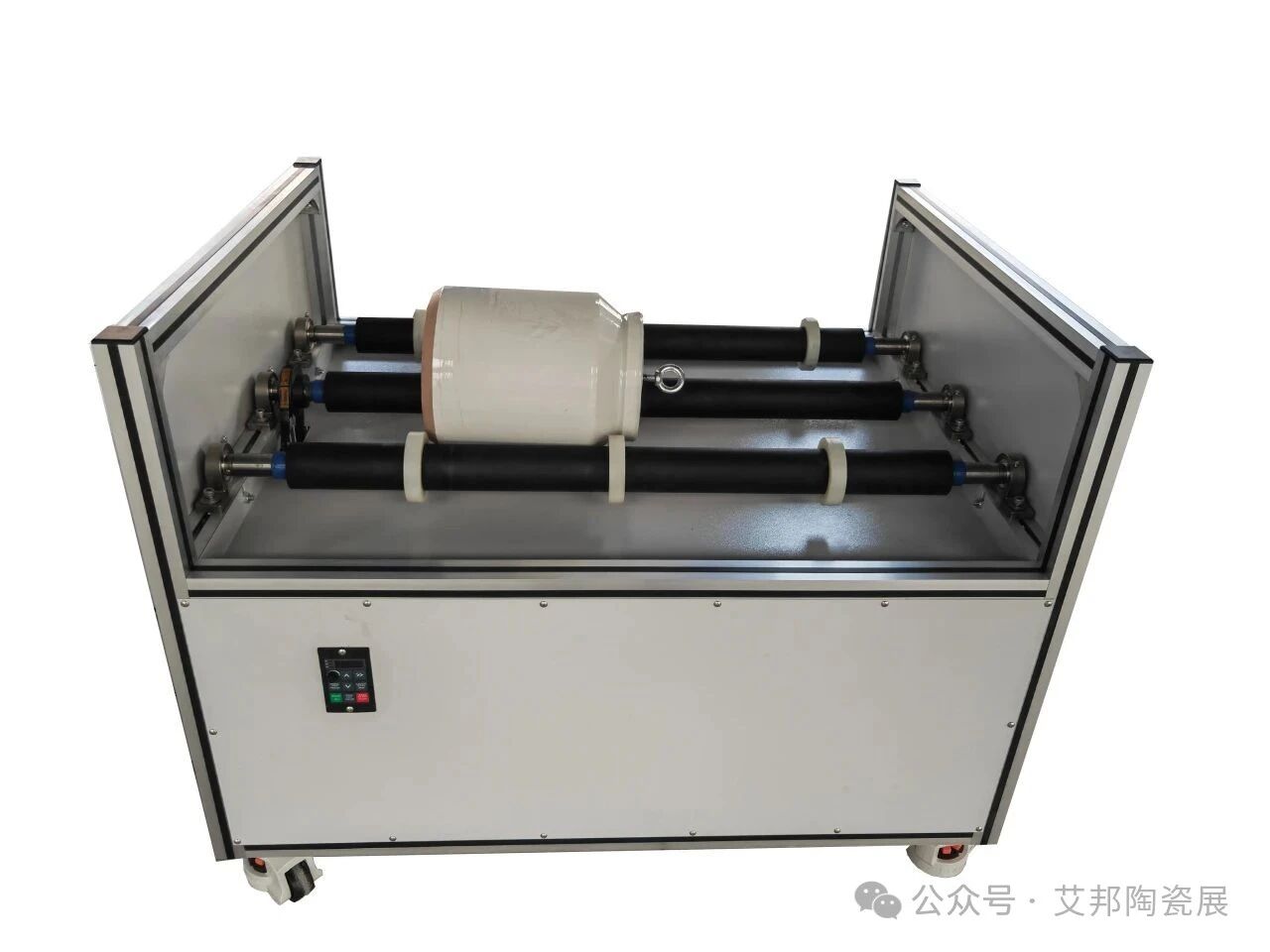

SK-QM300 Ball Mill

5-Roller Ball Mill

SK-QM300 Ball Mill

Product Overview:

The SK-QM300 ball mill serves as a critical stage following initial material crushing, designed for the further pulverization of materials. Primarily utilized in industries such as silicate products, glass, and ceramics, the equipment is capable of performing dry or wet grinding on various ores and other grindable materials.

Key Technical Parameters:

Grinding Drum Volume: 5–50 L

Grinding Drum Material: Stainless steel, carbon steel, manganese steel, alumina, zirconia

Multi-stage Control: Preset time intervals and corresponding rotation speeds

Grinding Drum Speed: 30–300 rpm

Motor Power: 0.4 kW–5.5 kW

Technical Highlights:

1. Multi-stage timing and speed control: Allows for the presetting of specific time intervals and corresponding rotational speeds to meet diverse processing requirements.

2. Adjustable shaft spacing: The adjustable shaft spacing enables the equipment to handle materials of varying particle sizes.

3. Adjustable rotational speed: The rotational speed of the grinding drum is adjustable between 30 and 300 rpm, catering to the grinding needs of different materials.

4. Versatile grinding jar options: Compatible with grinding jars made from various materials—such as stainless steel, carbon steel, manganese steel, alumina, and zirconia—to suit specific material characteristics.

5. Sealed design: Features a sealed design that effectively reduces noise and improves the operating environment.

6. Safety protection systems: Equipped with comprehensive safety protection mechanisms to ensure safe equipment operation.

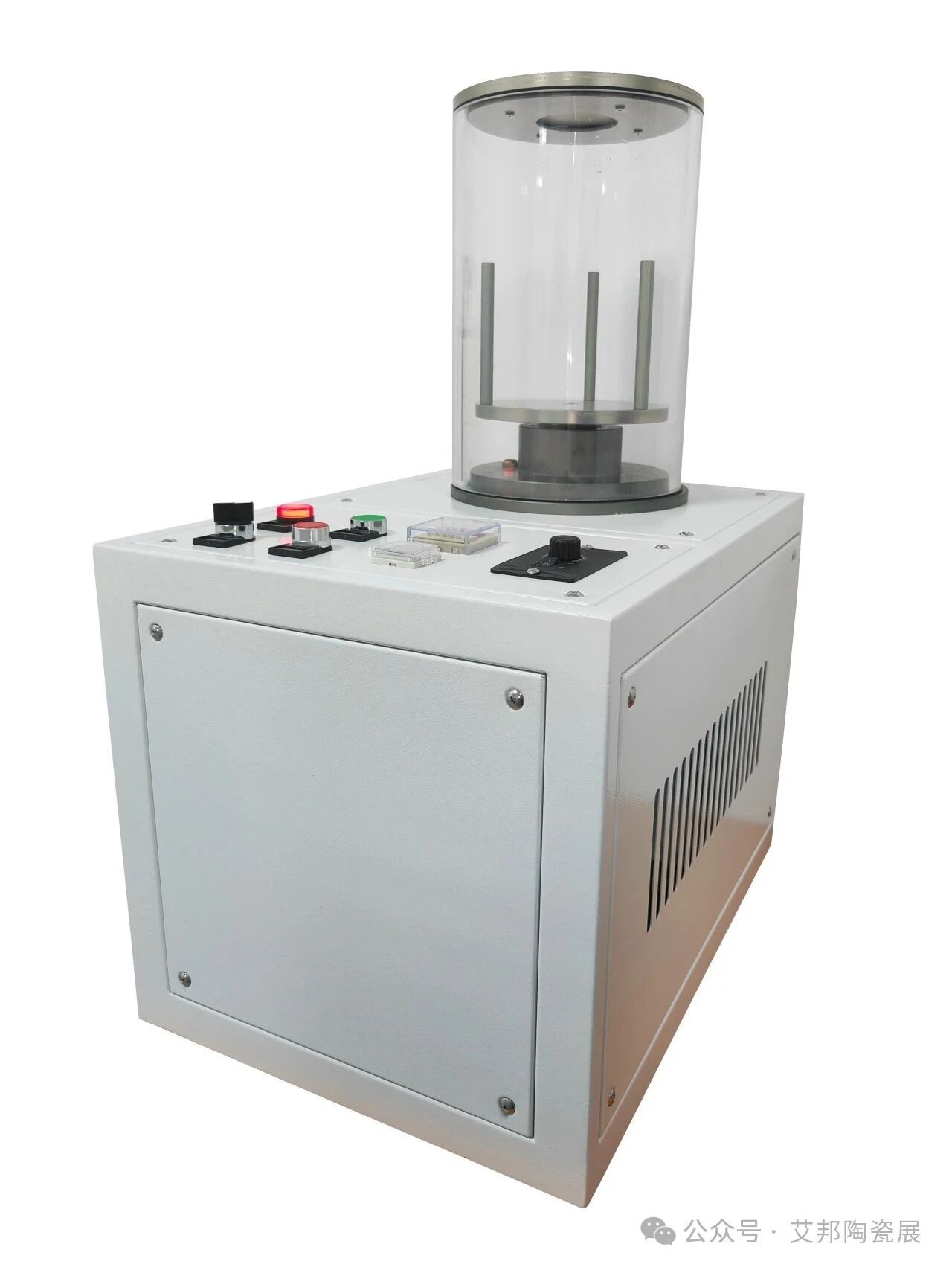

SK-TBS Vacuum Degassing Machine

6 Vacuum Degassing Mixer

SK-TBS Vacuum Degassing Mixer

Product Overview:

The SK-TBS vacuum degassing mixer stirs mixed slurries under vacuum conditions and features stepless speed regulation. This series is designed to meet the diverse mixing and degassing requirements of various slurries, making it suitable for a wide range of industrial applications.

Key Technical Parameters:

Effective Volume: 1–2 L (Lab model); 5–30 L (Production model)

Vacuum Level: -0.095 MPa

Mixing Speed: 0–150 rpm

Vacuum Pump: 2 L/s

Vacuuming Time: 1–5 min

Mixing Time: 0–100 h

Operating Voltage: 220 V

Equipment Power: 800 W

Technical Highlights:

1. Adjustable stirring speed: The stirring speed is adjustable between 0 and 150 rpm, allowing for precise control.

2. Automatic pressure compensation: The equipment features an automatic pressure compensation function to maintain a stable operating environment.

3. Digital vacuum pressure display: An LCD screen displays vacuum pressure in real-time, facilitating monitoring and adjustment.

4. Effective silicone gasket sealing: Silicone gaskets ensure a tight seal, maintaining a stable vacuum state.

5. Comprehensive safety protection: The equipment is equipped with comprehensive safety protection mechanisms to ensure operational safety.

Company Profile

Wuhan Xike Intelligent Technology Co., Ltd.

Located in the Gedian Economic Development Zone of Ezhou City, Hubei Province, Wuhan Xike Intelligent Technology Co., Ltd. is a high-tech enterprise integrating R&D, design, manufacturing, sales, and service.

The company specializes in the manufacture of equipment such as ceramic tape casting machines, proton exchange membrane (PEM) casting machines, battery separator casting machines, thin-sheet casting machines, edible film casting machines, magnetic material casting machines, fuel cell membrane casting machines, polymer film casting machines, vacuum degassing machines, roller ball mills, cutting machines, warm isostatic presses, hot-cutting machines, and vacuum laminating machines.

Its equipment is widely used in complete production lines for battery separators, energy storage PEMs, fuel cell PEMs, LTCC, HTCC, and MLCC components, as well as in tape casting processes for functional thin-sheet materials, piezoelectric ceramics, chip ceramic components, flexible magnetic films, food-grade films, coated filtration membranes, and solid oxide fuel cells (SOFCs). Adhering to a business philosophy of "people-oriented, customer-first, integrity, and professional excellence," the company is dedicated to providing high-quality products and technical services to its customers.
