Wuhan Kunyuan: Possesses end-to-end cast molding technology, achieving micron-level thickness tolerance control.
Wuhan Kunyuan Casting Technology Co., Ltd. will participate in Aibang’s 8th Precision Ceramics Industry Chain Exhibition from August 26 to 28, 2026 (Booth No. D31). We warmly welcome industry colleagues to visit us and exchange ideas!
Product Showcase

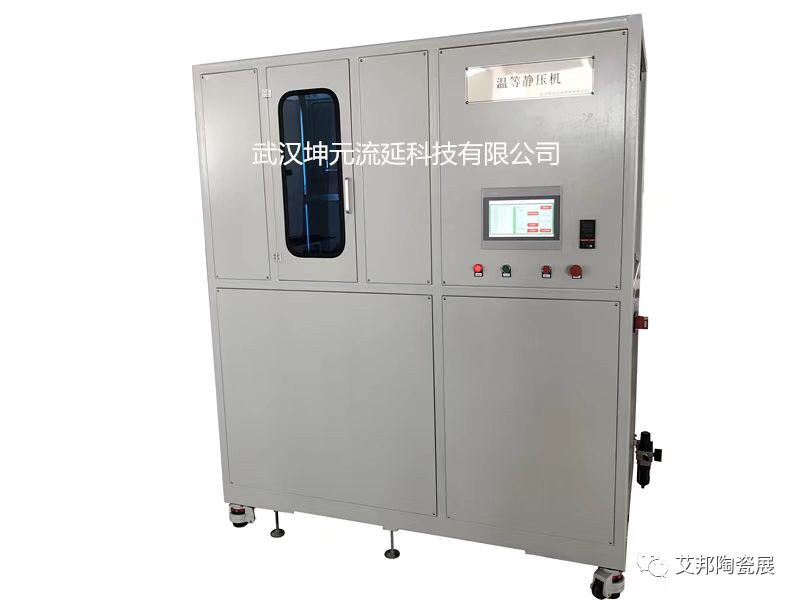

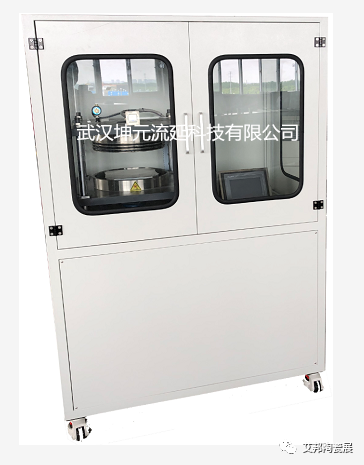

1. Warm Isostatic Press
Application Areas
Used for pressing multilayer ceramic green bodies and other thin films to enhance the products' physical and electrical properties.
Technical Parameters
Operating Pressure: 25 MPa, 40 MPa, 60 MPa, 100 MPa (customizable)
Working Medium: Tap water / Deionized water
Operating Temperature: Up to 80°C (adjustable)
Pressure Chamber: Customized according to requirements
Control System
Color LCD touchscreen; electrical control system based on Siemens PLC (Programmable Logic Controller)
Pressurization and Heating Systems
Uses a gas-driven booster pump with programmable pressure control for precise regulation; employs electric heating, allowing for simultaneous heating and pressurization.
Fully Automated Multi-Stage Control System
Supports fully automated, multi-stage programming for preheating, pressurization, pressure holding, and pressure release.

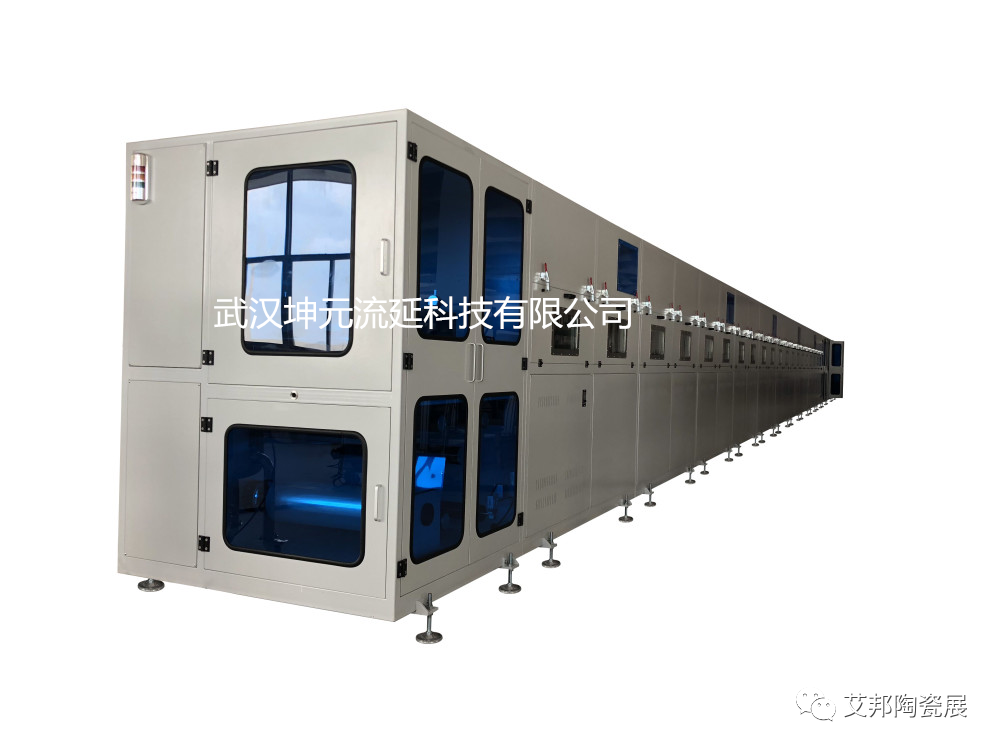

2. Large-scale Ceramic Tape Casting Machine
Applications
Used in the tape casting production of SOFCs, LTCCs, HTCCs, MLCC chips, functional thin-film materials, piezoelectric ceramics, ceramic substrates, chip ceramic components, flexible magnetic films, sensors, and other film products. Features high production efficiency, high equipment precision, ease of operation, and convenient maintenance.
Technical Specifications
1. Casting width: Customizable between 350–1000 mm
2. Speed: 0.015–3.0 m/min
3. Slit height: 5–4500 μm
4. Blade adjustment precision: 0.001 mm
5. Mechanical reference precision: ±(1 μm + 2% of thickness)
6. Drying oven length: Customizable between 12–30 meters
6. Base plate temperature control: Room temperature to 100°C (adjustable)
7. Inlet air temperature: Room temperature to 100°C; independently adjustable for each section (high-temperature modules available upon request based on process requirements)
8. Automatic feeding system: Liquid level control (0–40.0 mm)
9. Film winding system with tension control
10. Automatic edge guiding system
11. Compatible slurry solvents: Water-based and organic solvents

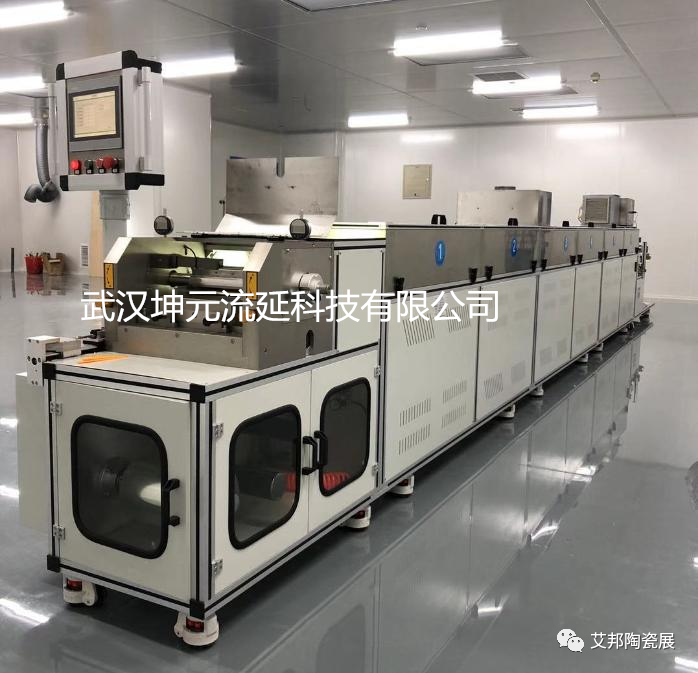

3. Medium-sized Ceramic Tape Casting Machine
Application Areas
Used in the R&D and small-to-medium-scale production of SOFCs, LTCCs, HTCCs, MLCCs, functional thin-film materials, piezoelectric ceramics, ceramic substrates, chip ceramic components, flexible magnetic films, sensors, and sheet/film products via tape casting processes. Features high production efficiency, high equipment precision, ease of operation, and convenient maintenance.
Technical Specifications
1. Casting width: Customizable between 220–800 mm
2. Speed: 0.015–3.0 m/min
3. Slit height: 5–4500 μm
4. Blade adjustment precision: 0.001 mm
5. Mechanical reference precision: ±(1 μm + 2% of thickness)
6. Drying oven length: Customizable between 6–24 meters
6. Base plate temperature control: Room temperature to 100°C (adjustable)
7. Inlet air temperature: Room temperature to 100°C; independently adjustable for each section (high-temperature modules available upon request based on process requirements)
8. Automatic feeding system: Liquid level height 0–40.0 mm
9. Film winding system with tension control
10. Automatic edge guiding system
11. Compatible slurry solvents: Aqueous and organic solvents

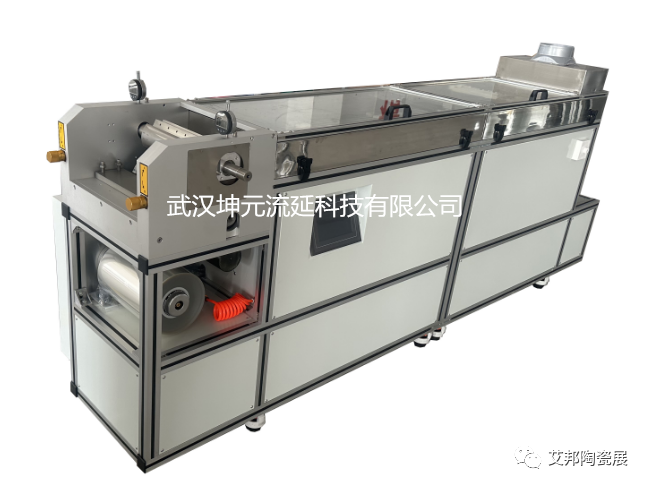

4. Laboratory-scale tape casting machine
Application Areas
Used in R&D and experimental processes for tape casting products such as SOFCs, LTCC/HTCC/MLCC components, functional thin-film materials, piezoelectric ceramics, ceramic substrates, chip ceramic components, flexible magnetic films, sensors, and thin-film sheets.
Technical Specifications
1. Casting width: Customizable between 120–450 mm
2. Speed: 0.015–1.0 m/min
3. Slit height: 5–4500 μm
4. Blade adjustment precision: 0.001 mm
5. Mechanical reference precision: ±(1 μm + 2% of thickness)
6. Base plate temperature control: Room temperature to 100°C (adjustable)
7. Tension control function: Adjustable
8. Compatible slurry solvents: Aqueous and organic solvents
5. Vacuum Lamination Press
Applications
Used in the manufacturing process of multi-layer films involving prepregs or dried sheet materials. It facilitates the lamination and bonding of these sheets under controlled temperature, pressure, and vacuum conditions.
Technical Specifications
1) Platen dimensions: 210 x 210 mm (customizable)
2) Heating platen temperature range: Ambient temperature to 120°C
3) Heating module uniformity: ±2°C
4) Chamber vacuum level: Up to -0.065 MPa
5) Pressure range: 6–40 tons (customizable)
Modular heating system ensuring high temperature uniformity;
LCD display for real-time monitoring of the vacuum status within the working chamber—intuitive and reliable;
High-pressure application via a hydraulic unit with automatic control for ease of operation.
Company Profile
Wuhan Kunyuan Casting Technology Co., Ltd.
Wuhan Kunyuan Casting Technology Co., Ltd. is located in Wuhan, Hubei Province. It is a specialized manufacturer of equipment such as ceramic tape casting machines, warm isostatic presses, and warm water isostatic presses. Its equipment is widely used in complete tape casting production lines for products including SOFCs, LTCCs, HTCCs, MLCC chips, functional thin-film materials, piezoelectric ceramics, ceramic substrates, chip-type ceramic components, flexible magnetic films, and solid oxide fuel cell membranes.
Guided by a customer-centric philosophy and a commitment to creating value for clients, we strive to win market recognition through quality and service. We sincerely look forward to collaborating with partners across all sectors to create value, give back to society, and achieve shared success and excellence.
Contact for Cooperation: Manager Tang (15926390207)
Official Website: http://kylysb.com
