One-stop equipment for Aluminum Nitride (AlN) HTCC high-temperature sintering and debinding-sintering; Tops Thermal Equipment supports diverse ceramic processing applications.
Hefei Tops Semiconductor Technology Co., Ltd. will participate in Aibang’s 8th Precision Ceramics Industry Chain Exhibition from August 26 to 28, 2026 (Booth No. D41). We warmly welcome industry colleagues to visit us and exchange ideas!
Company Profile
Established in August 2023, Hefei Taopusi Semiconductor Technology Co., Ltd. is a technology-driven enterprise specializing in the R&D, manufacturing, and sales of specialized process equipment for the electronics industry. The company has established close industry-academia-research partnerships with numerous renowned universities and research institutions both domestically and internationally. Its core product portfolio includes ceramic sintering furnaces, vacuum sintering furnaces, vacuum brazing furnaces, sintering stations and test benches for solid oxide fuel cell (SOFC) stacks, and stack sintering furnaces. Catering to the demand for specialized equipment in the global semiconductor and microelectronics sectors, the company is committed to becoming a leading global provider of manufacturing solutions for semiconductor and microelectronics process equipment.
Since its inception, Hefei Taopusi has upheld the corporate philosophy of "technology leadership, social responsibility, win-win cooperation, and sustainable development." By assembling top-tier research talent and industry experts in the thermal processing equipment field, the company has built a highly qualified and specialized R&D and design team. The company currently employs 65 people, including 30 R&D and design staff; its core R&D and technical personnel possess over five years of experience in the microelectronics process equipment industry. Keeping pace with the times and focusing closely on market demands, the company continuously overcomes technical bottlenecks, earning widespread industry recognition and acclaim in the field of specialized thermal processing equipment.
Product Introduction

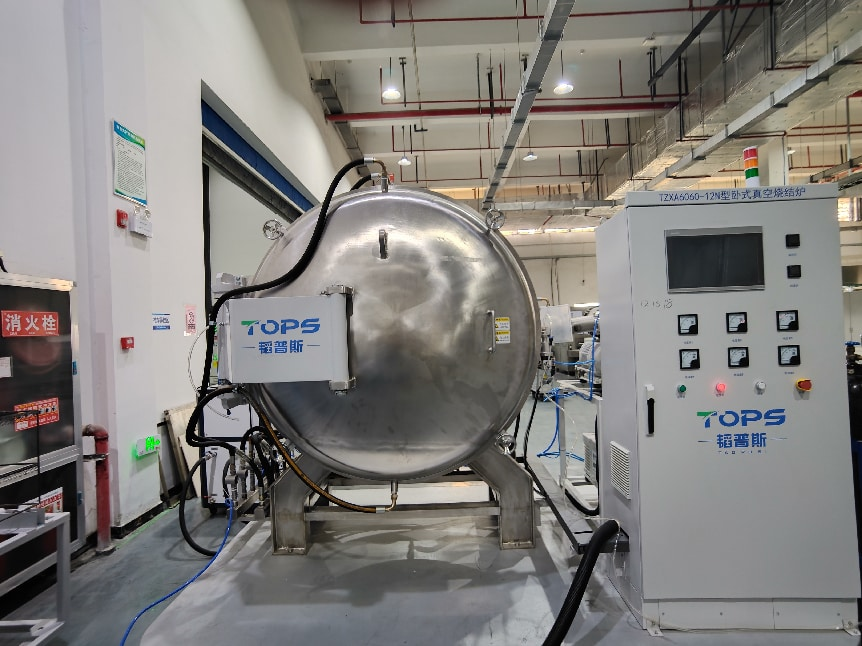

Vacuum Sintering Furnace for Aluminum Nitride Ceramics (Horizontal Type)
The specialized vacuum sintering furnace (horizontal type) for aluminum nitride ceramics is primarily used for the high-temperature co-firing process of HTCC products, such as aluminum nitride and alumina. The equipment consists of a furnace body, heating chamber, vacuum system, gas-filling system, water-cooling system, and electrical control and power supply systems; it offers advantages such as high operating temperatures, a highly clean and atmosphere-controlled environment, and ease of operation.

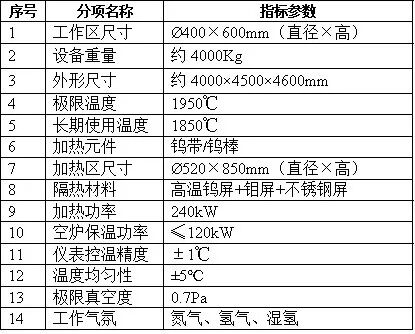

Key Specifications:

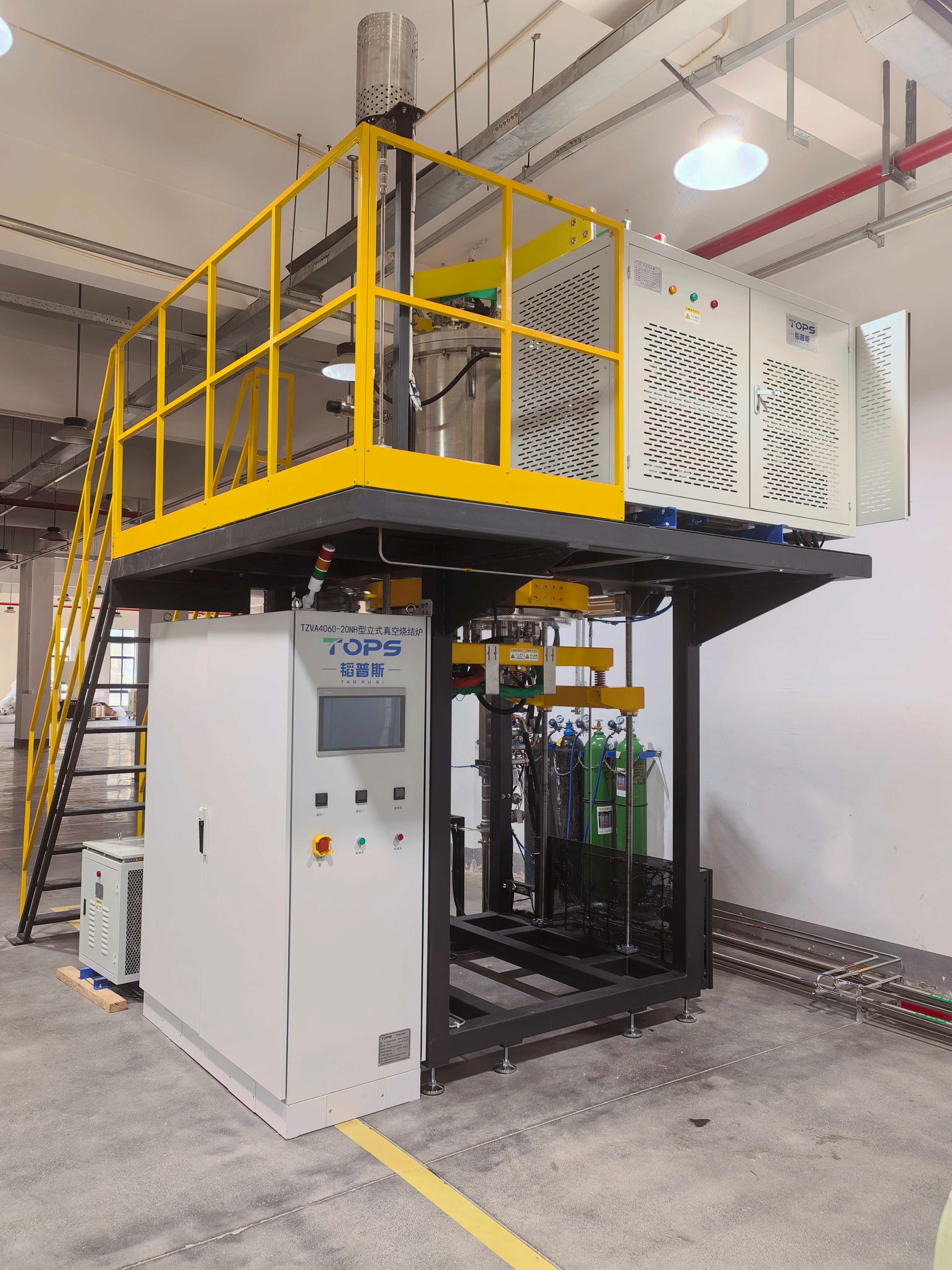

Vertical Vacuum Sintering Furnace for Aluminum Nitride Ceramics
The vertical vacuum sintering furnace designed for aluminum nitride ceramics is primarily used for the high-temperature co-firing process of HTCC products, such as aluminum nitride and alumina. The equipment comprises a furnace body, door locking mechanism, door lifting mechanism, vacuum system, thermal zone structure, temperature measurement and control system, cooling water system, compressed air system, and atmosphere system. It offers advantages such as high temperature uniformity, precise atmosphere control, excellent process stability, ease of operation, and high space utilization.
Key Specifications:
Solid-state oxide battery stack sintering test station
This equipment is specifically designed for the sintering and testing of high-temperature solid oxide fuel cells (SOFCs). It supports testing ranging from single cells to 3 kW stacks and is compatible with various gases, such as H₂ and CO. It meets customer requirements for performance and reliability testing—as well as material characterization—across single cells, stacks, and system components. Comprehensive safety features, including leak detection, over-temperature and over-pressure protection, automatic shutdown, and emergency pressure relief, ensure safe operation.
Key Specifications:

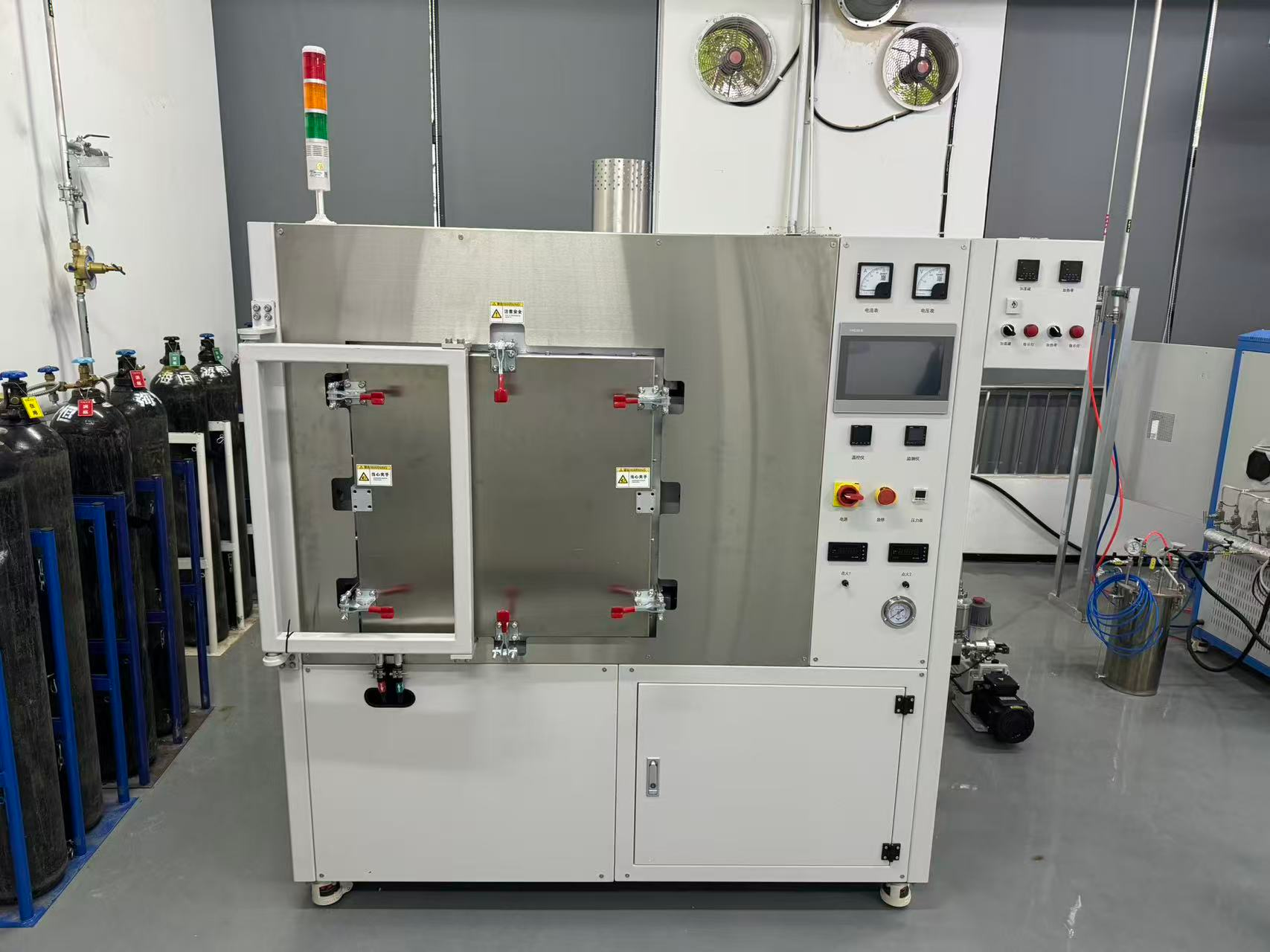

Box-type atmosphere ceramic sintering furnace
The box-type atmosphere ceramic sintering furnace is designed for the high-temperature sintering and flattening of ceramic materials. It enables both debinding and sintering to be performed within a single unit. Key advantages include a uniform temperature field, low external surface temperature, rapid heating and cooling rates, and energy efficiency. The furnace utilizes molybdenum wire heating elements, achieving a maximum temperature of 1650°C. It features a double-shell structure and a multi-stage programmable temperature control system employing phase-shift triggering and SCR control. The heating chamber is lined with imported polycrystalline alumina fiberboard, and an air-cooling system between the double shells facilitates rapid temperature changes. The system supports various process gases, including dry hydrogen, wet hydrogen, nitrogen, and nitrogen-hydrogen mixtures. It offers both manual and one-touch start modes; in one-touch mode, the equipment automatically executes furnace purging, gas intake, and sintering cycles without the need for manual intervention.
Key Specifications:
Vacuum debinding and sintering furnace
A vacuum debinding and sintering furnace is an industrial furnace designed to heat molded green bodies in a vacuum or protective atmosphere to remove the binder (debinding) and subsequently raise the temperature to a high level to achieve densification (sintering). It is primarily used for the debinding and sintering of metal injection molded (MIM) products, 3D-printed parts, and metal support layers for MS-SOFCs.

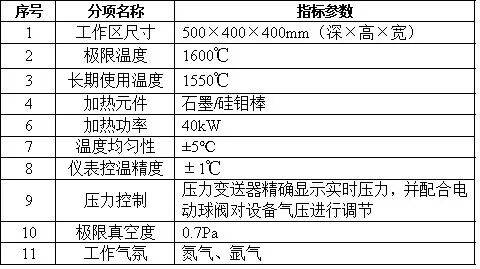

Key Specifications:
