Long Jin Automation Machinery: World's first fully automated end-termination equipment and consumables for passive components.
Longjin Automation Machinery Co., Ltd. will participate in Aibang’s 8th Precision Ceramic Industry Chain Exhibition from August 26 to 28, 2026 (Booth No. D06). We warmly welcome industry colleagues to visit us and exchange ideas!
01 Company Profile
Founded in 1988, LONG Automatic Machinery Co., Ltd. is a global pioneer specialized in automated termination equipment and consumables for the passive component industry. Trusted and adopted by tier-one manufacturers worldwide, our footprints span 23 advanced nations across Asia, Europe, and the Americas. Engineered for multi-layer ceramic capacitors (MLCC), chip inductors, resistors, and various other passive components, our high-precision automation solutions deliver flawless performance in diverse termination processes.
LONG’s proprietary innovation, the Thin Carrier Plate (TCP),redefines chip carrier technology. Featuring a thin and lightweight profile, TCP delivers high throughput, minimized energy consumption, optimized cost efficiency, and exceptional alignment accuracy—significantly elevating our clients' market competitiveness.
LONG has successfully pioneered the TCP Fully Automated Production Line, a turnkey system designed for hands-free, fully autonomous carrier processing. This cutting-edge solution serves as the definitive cornerstone for passive component manufacturers transitioning toward unmanned operations and Industry 4.0 smart manufacturing.
Industry Applications: advanced expertise in precision silver termination dipping for MLCC, MLCI, LTCC, LICC, MLV, VDR, RF Components, Filters, SMD, and more.
Long Dip Company Website: www.longdip.com
02 Product Introduction
01

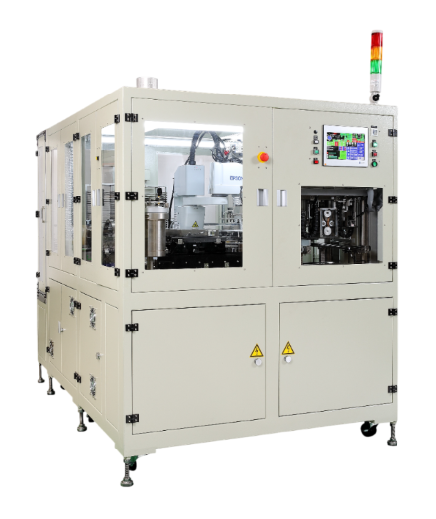

Fully Automatic Silver-Dipping and Coating Machine for Thin Substrates

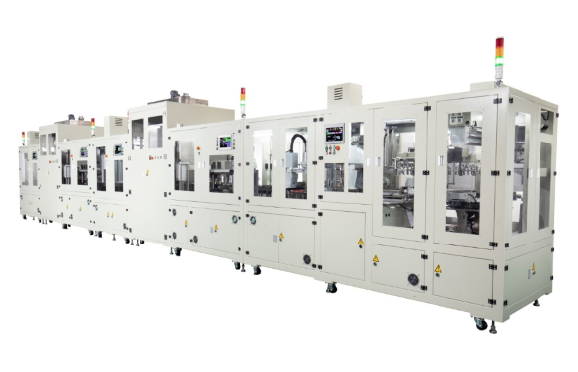

TCP Autoline
Coating Machine (for TCP)
● Model ：LGTM-6837
● Usage ：
1.Use for Chip-Dipping and Termination process of capacitor, resistor and inductor；
2.Applicable on termination dipping.
● Carrier Type ：
薄膠板 (THIN CARRIER PLATE，簡稱TCP)
● Applicable chip size ：
Chip size above 0402(1005mm), single and double side dipping.
● Capacity ：
Throughput varies by chip size.For example, 0402(1005mm) throughput 1,100K/hr.
02

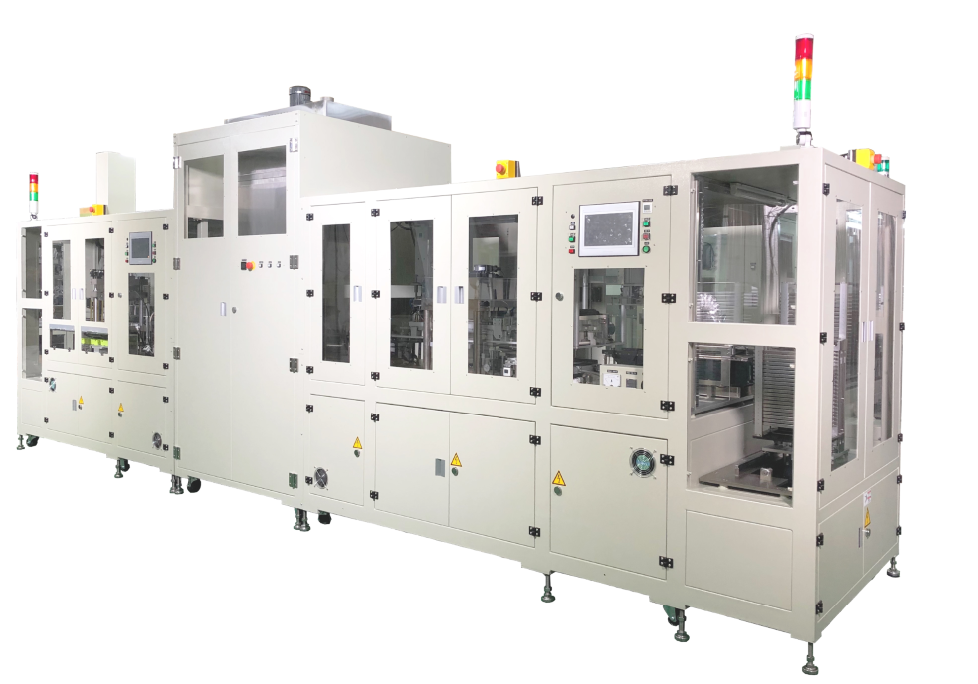

TCP Autoline
● Model ：LGTM-6832
● Usage ：
1.Use for Chip-Dipping and Termination process of capacitor, resistor and inductor；
2.Applicable on termination dipping.
● Carrier Type ：
薄膠板(THIN CARRIER PLATE，簡稱TCP)
● Applicable chip size ：
Chip size above 0402(1005mm), single side dipping.
● Capacity ：
Throughput varies by chip size.For example, 0402(1005mm) throughput 550K/hr.
03

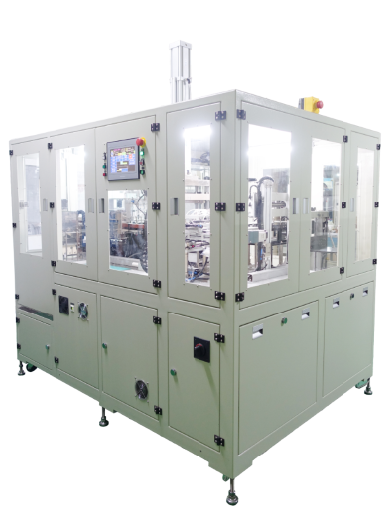

TCP Auto loading/unloading dipping machine
● Model ：LGTM-6195
● Usage ：
1.Use for Chip-Dipping and Termination process of capacitor, resistor and inductor.
2.Applicable on termination dipping, slant dipping, and special dipping.
● Carrier Type ：
薄膠板(THIN CARRIER PLATE，簡稱TCP)
● Applicable chip size ：
Chip size above 0201(0603mm), single and double side dipping.
● Capacity ：
Throughput varies by chip size. For example, 0402(1005mm) throughput 550K/hr.
04

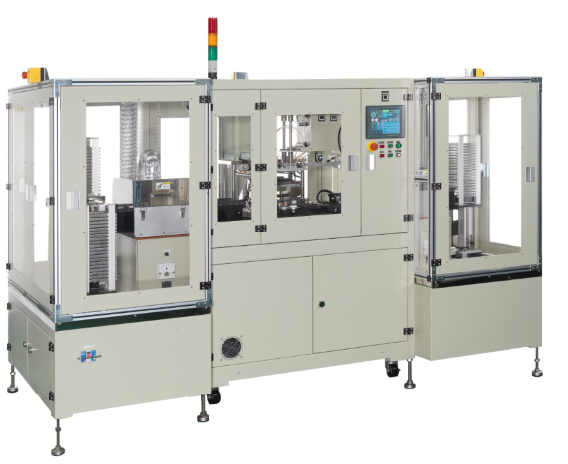

TCP Auto loading/unloading dipping machine
● Model ：LGTM-6191-3D
● Usage ：
1.Use for Chip-Dipping and Termination process of capacitor, resistor and inductor.
2.Applicable on termination dipping, slant dipping, and special dipping.
● Carrier Type ：
(THIN CARRIER PLATE，簡稱TCP)
● Applicable chip size ：
Chip size above 0201(0603mm), single and double side dipping.
● Capacity ：
Throughput varies by chip size. For example, 0402(1005mm) throughput 550K/hr.
05

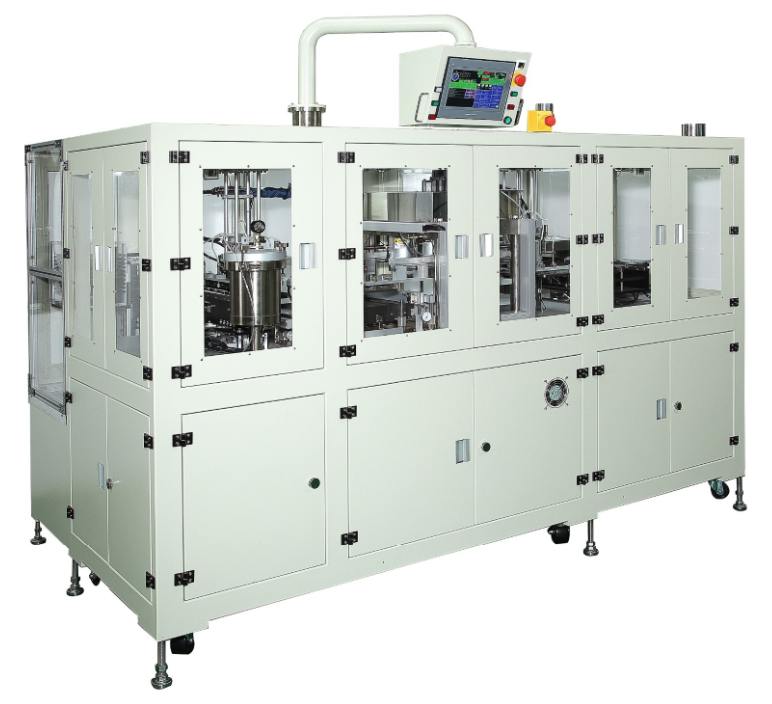

Array Auto loading/unloading dipping machine
● Model ：LGTM-3968
● Usage ：
1.Use for Chip-Dipping and Termination process of capacitor, resistor and inductor.
2.Applicable on array dipping, corner dipping, slant dipping, and special dipping.
● Carrier Type ：
(ARRAY THIN CARRIER PLATE，簡稱ATCP)
● Applicable chip size ：
0605mm or above.
● Capacity ：
Throughput varies by chip size. For example, 0402(1005mm) throughput 160K/hr.
06
Auto Loader
● Model ：LGVI-8101-B
● Usage ：
Insert chips into TCP
● Carrier Type ：
(THIN CARRIER PLATE，簡稱TCP)
● Applicable chip size ：
0201(0603mm)~2220(5750mm)
● Capacity ：
This is a peripheral machine of dipping machine.
07

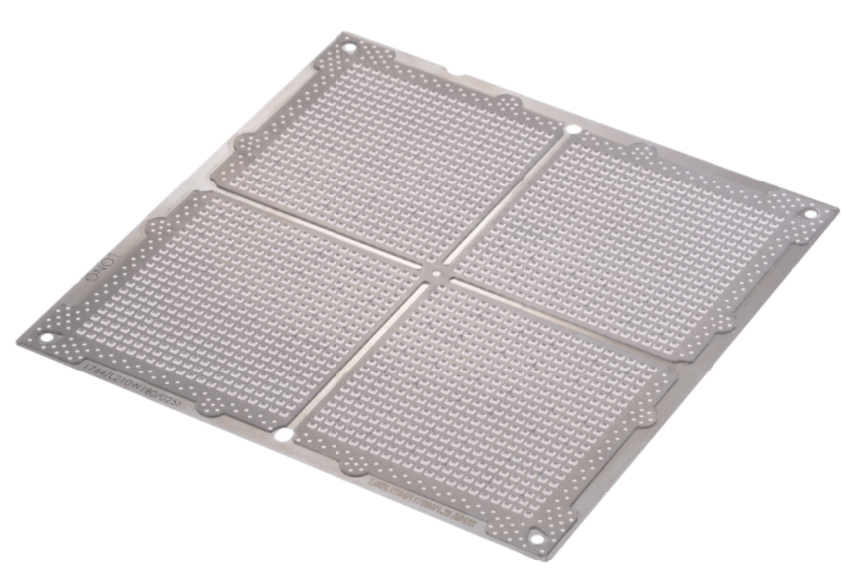

(THIN CARRIER PLATE，簡稱TCP)
● Model ：LGTP(Based on specification coding)
● Usage ：
Carrier for termination dipping and slant dipping.
● Applicable chip size ：
Applicable for termination dipping and slant dipping with chip size 0201 (0603mm) or above.
● Product Features ：
Lightweight, thin, high-quality, low-energy, low-cost, and high-output carriers designed for termination dipping, slant dipping, and special dipping.
07

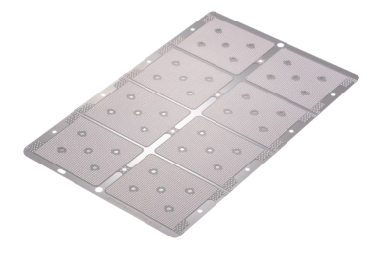

(ARRAY THIN CARRIER PLATE，簡稱ATCP)
● Model ：LGDL (Based on specification coding)
● Usage ：
Carrier for X2Y, array, corner and slant dipping process.
● Applicable chip size ：
Applicable for chip size 0605mm or above.
● Product Features ：
Lightweight, thin, high-quality, low-energy, low-cost, and high-output carriers designed for array dipping, slant dipping, and special dipping.
